TM-1 Full-set

137EUR

TM-1 Basic-set

100EUR

TM-2 Full-set

144EUR

TM-2 Basic-set

107EUR

purchase options:

Dimensions

Manual

Order another option

PRICES:
TM-1 Basic-set > Input, Volume, Bass, Treble: 100EUR
TM-1 Full-set > Input, Volume, Bass, Middle, Treble, Punch, Boost: 137EUR
TM-2 Basic-set > Volume, Blend, Bass, Treble: 107EUR
TM-2 Full-set > Volume, Blend, Bass, Middle, Treble, Punch, Boost: 144EUR

Optional modules for individual extension of the basic set:
MIDDLE 18EUR / BOOST 13EUR / PUNCH 17EUR

Kup Teraz

Koszyk

Specyfication

Taurus TM On Board preamps are designed for installation in a bass guitar. It is the modular design for easy configuration of controllers. Installation is very simple, it only requires soldering the pickups and power supply. The modules are connected to each other with a flat cable with connectors, which is included to the set. Two bass pre-amp models are available. The TM-2 used for two pick-ups basses and the TM-1 used for basses with one pick-up only. The pre-amps are identical except for the input modules.

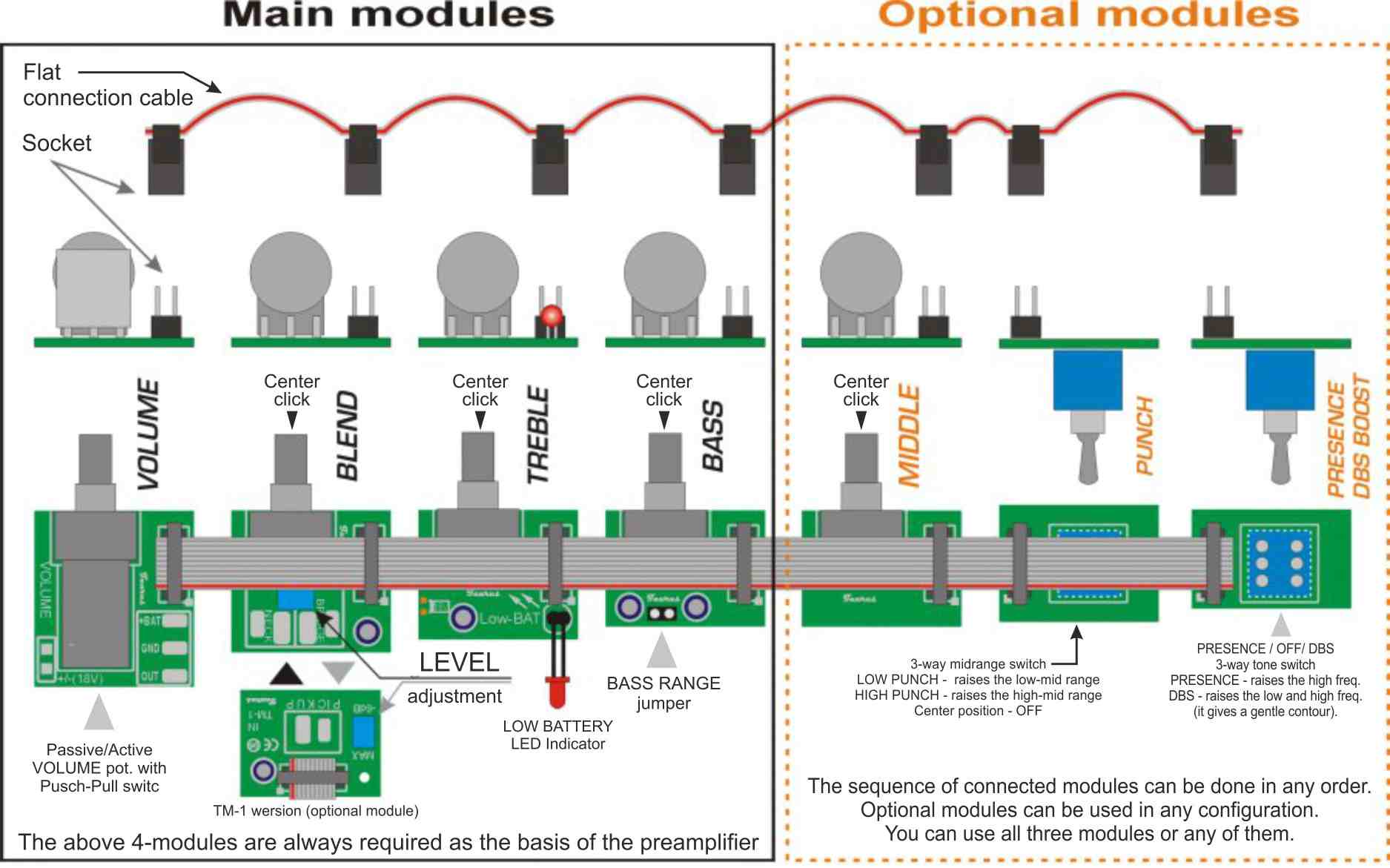

The pre-amp contains four main modules (VOLUME, BLEND, BASS and TREBLE) which must be used. The sequence of connected modules is unrestricted. Three optional modules (PUNCH , PRESENCE/BOOST and MIDDLE) can be use in any possible configuration or not at all. The modules (Pre-amp and optional) are designed to be easily joined together by the flat connecting wire (No soldering required).

The Taurus pre-amps can be powered ether by one or two 9V batteries. The two battery option (18V) is recommended for greatest dynamic range.

On board pre-amps could work on low battery power (3-4V) but would compromise sound quality by its loss of dynamic and consequently, distortion. To prevent this, Taurus pre-amps are built with a Low Battery LED Power Indicator, signaling replacement time.

Taurus recommends installing the LED indicator on the back cover plate of the instrument, eliminating the need for additional connections and adapters. Simply secure the LED (3mm diameter) in the designated opening of the back cover.

The preamp can operate in two modes, passive and active. All controls work in active mode, and VOLUME and BLEND controls work in passive mode. The operating mode switch is integrated with the VOLUME potentiometer.

Back

TM1 / TM2 Onboard bass preamps

Modular design

VOLUME control
Pickups BLEND control
BASS control: 40Hz +/-10dB @MLO 550Hz -/+5dB
it is possible to change it to 80Hz by bridge on PCB
TREBLE control: 8kHz +12dB/-14dB
MIDDLE control: 2kHz +8dB, 800Hz -8dB
PRESENCE/DBS-BOOST with triple micro-switch
DBS: 65Hz +7dB and 6kHz +4dB
PRESENSE: 6kHz +6dB
PUNCH tone with triple micro-switch:
Punch Low: 300Hz +7dB
Punch High: 600Hz +7dB
ACTIVE/PASSIVE mode switch integrated with the VOLUME pot.
Subsonic low-pass filter
Low battery indicator
9V or 18V supply
Current supply consumption:
2,7mA @ 9V main configuration
3,1mA @ 9V maximum configuration
The operating time on a 500mAh alkaline battery is approx. 160-hours.

CONFIGURATION (TM1 for 1-pickup / TM2 for 2-pickups)

TM1-basic set: VOLUME, BASS, TREBLE and pick-up input module with signal adjustment.
TM1-full set: VOLUME, BASS, TREBLE, MIDDLE, PUNCH, BOOST.

TM2-basic set: VOLUME BLEND, BASS, TREBLE.

TM2-full set: VOLUME, BLEND, BASS, TREBLE, MIDDLE, PUNCH, BOOST.

User configuration: BASIC SET + any of optional modules: MIDDLE, PUNCH, BOOST.
